Standard Width | Upto 2000mm | |
---|---|---|
Ply Type | EP/NN/PP | |
Standard Belt Ratings | 200 to 3200 KN/M | |
No. of Ply | 1Ply to 8Ply | |
Max. Belt Thickness | Upto 25mm | |
Splicing Method | Hot/Cold/Mechanical | |
Surface Finish | Plain Finish | |
Colour | Black | |
Edge | Cut Edge / Moulded Edge | |
Product Code | SR009P | |
Belt Identification | Belt Serial Number on Bottom Side for Standard Belts | |
Cover Grades & Temp, and Belt Usage Application as Below | ||
M - CFR | IS - 1891 - PART 1 | Temperature Range : -45°C |
FR-ISO 340 CFR / DIN-K-CFR | ISO-340-2013 | Temperature Range : -40°C |
FR-ISO 340-CFR / DIN-S-CFR | ISO 340 - 2013 | Temperature Range : -40°C |
FRX-CFR | CAN - CSA - M422 - 2014 | Temperature Range : -25°C |
Notes:For any specific Cover grade requirements outside of this chart, kindly contact our team.

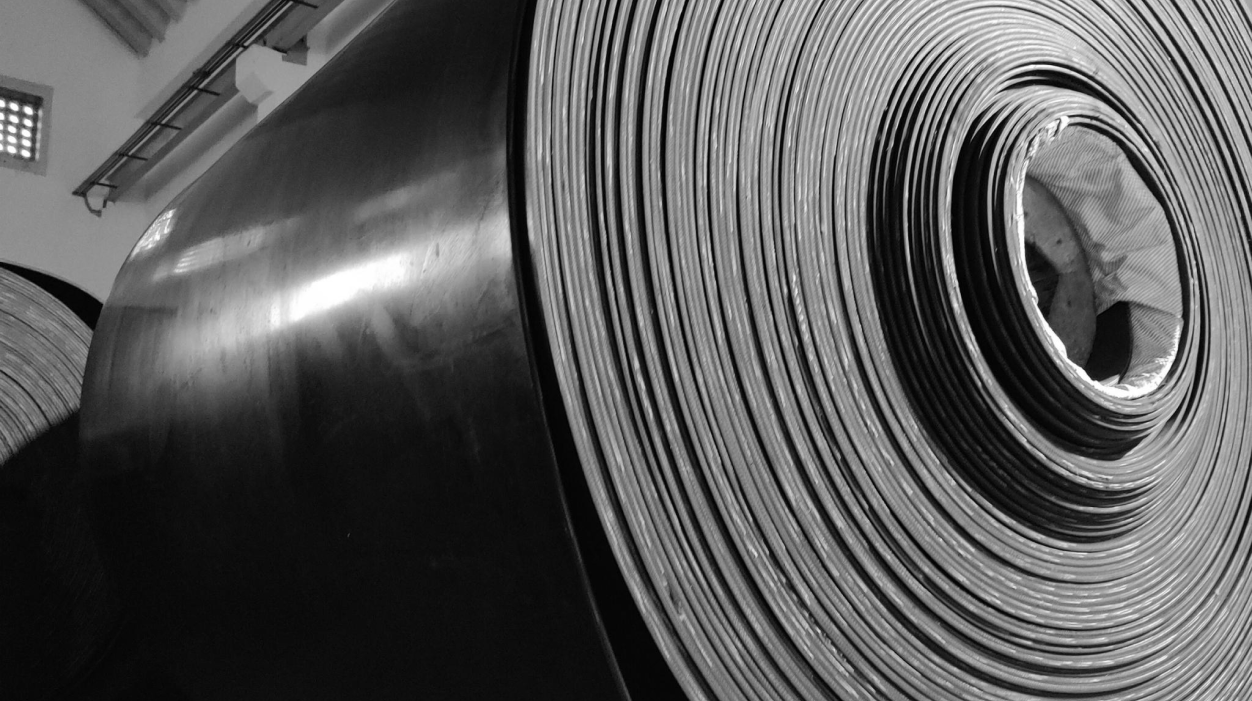

We Offer Cold Resistant Conveyor Belts Which Offer Rubber Cover Grades Specifically Engineered To Function Without Difficulty In Some Of The Coldest Operating Environments Known To Man. The Carcass Of The Cold Resistant Conveyor Belts Consists Of Polyester (Nylon) Fabric, Cotton Or Only Cotton Etc. By Adopting Rubber Layers With Lower Temperature Resistance This Cold Resistant Conveyor Belt Can Retain Its Outstanding Strength And Elasticity, As Well As Impact Strength Even Down To –40 to –60 Degrees Celsius. The Cold Resistant Conveyor Belt Is Produced By Forming And Rubber Vulcanization.

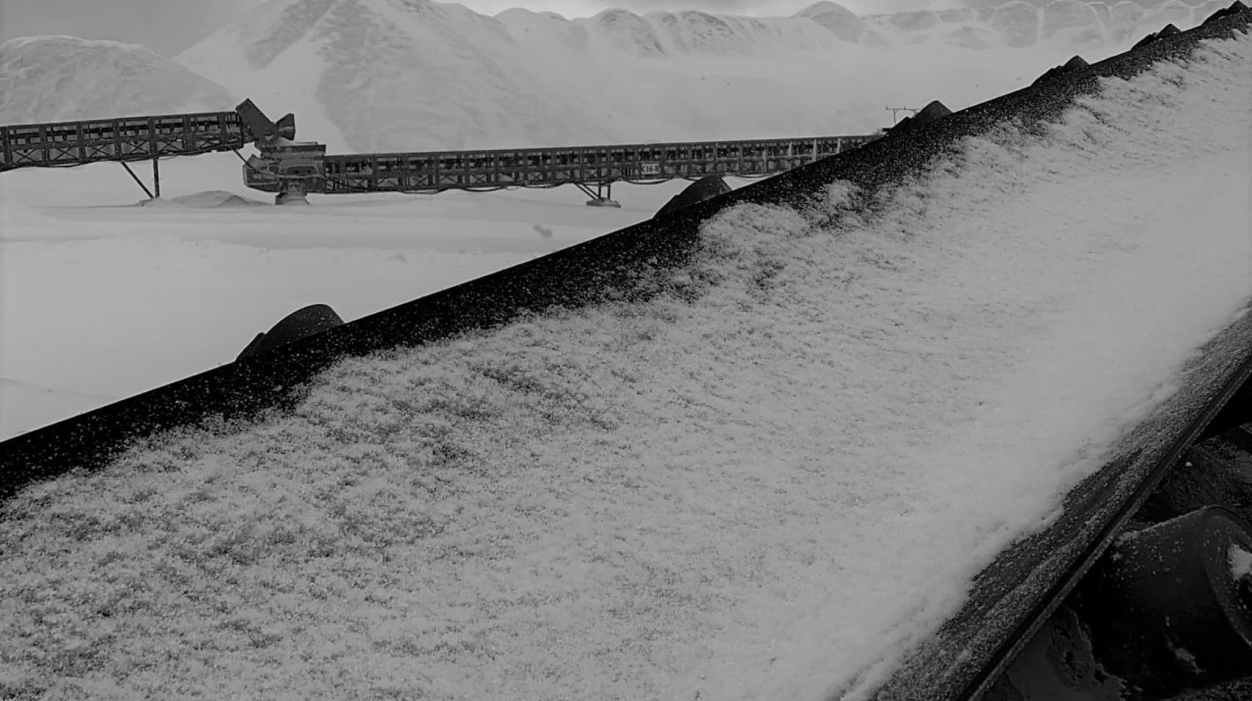

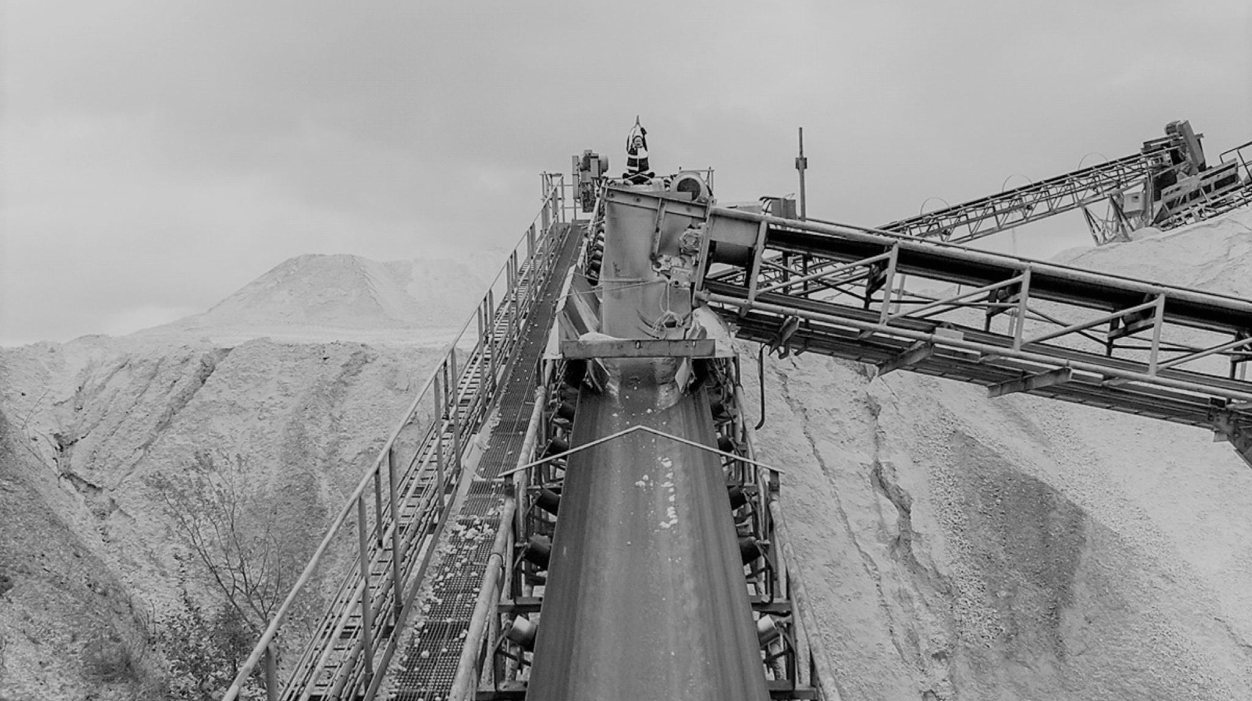

Cold Resistant Belts Are Suitable For For Conveying Materials Outdoor In The Freezing Area, For Conveying Materials To The Cold Storage, Transportation Of Frozen Fish, Meat And Ice Cream.
